Aeromotive Fuel Pump, In-Line, Brushless, Eliminator-Series (Includes T-Bolt Clamps For Mounting)

Description

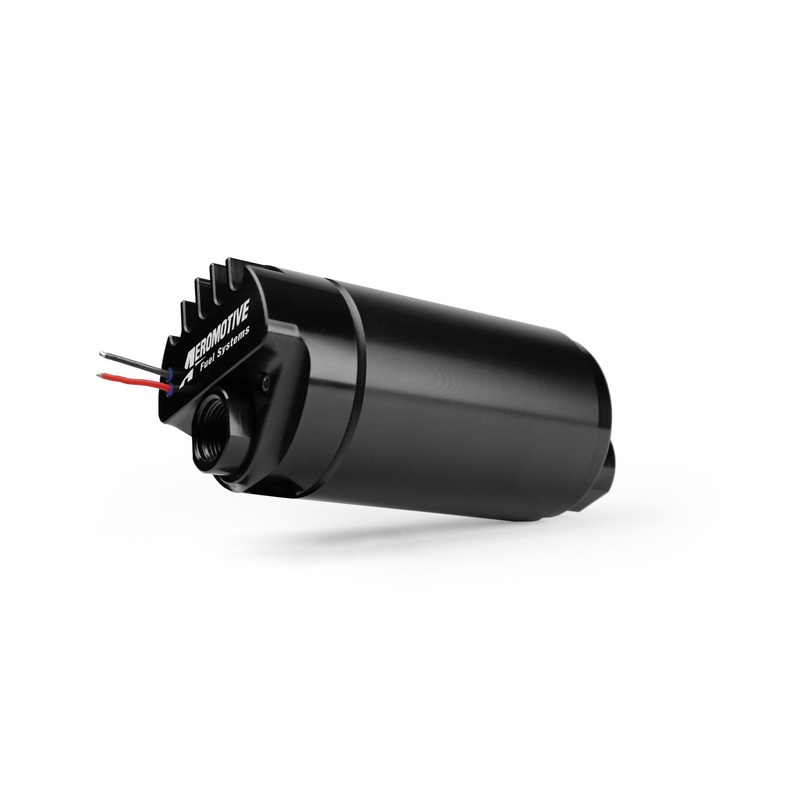

Part Number 11180 Eliminator Brushless External Fuel Pump
Eliminator Performance Plus Advanced Technology

• The Eliminator performance you expect and more:

  • Fuel Injected Engines:
    up to 1900 FWHP – naturally aspirated
    up to 1400 FWHP – forced air induction
  • Carbureted Engines:
    up to 2300 FWHP – naturally aspirated
    up to 1700 FWHP – forced air induction

• E85 Compatible, reduce max FWHP by 30%
• Lighter than the traditional Eliminator pump.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
• Quieter than the traditional Eliminator pump.
• ORB-12 inlet and ORB-10 outlet ports.
• Requires straight 12-VDC to 16-VDC power supply.
• Not compatible with pulse modulated systems or fuel pump speed controllers.

EFI Rated flow of 1,000 lbs./hr. @ 45 psi, 13.5 volts
Carb Rated Flow of 1,300 lbs./hr. @ 9 psi, 13.5 volts

View Installation Instructions

Also Available as a Drop-In Stealth Module and in Complete Stealth Fuel Cells. Click Here for More Info
